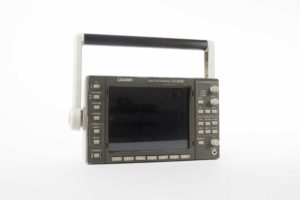

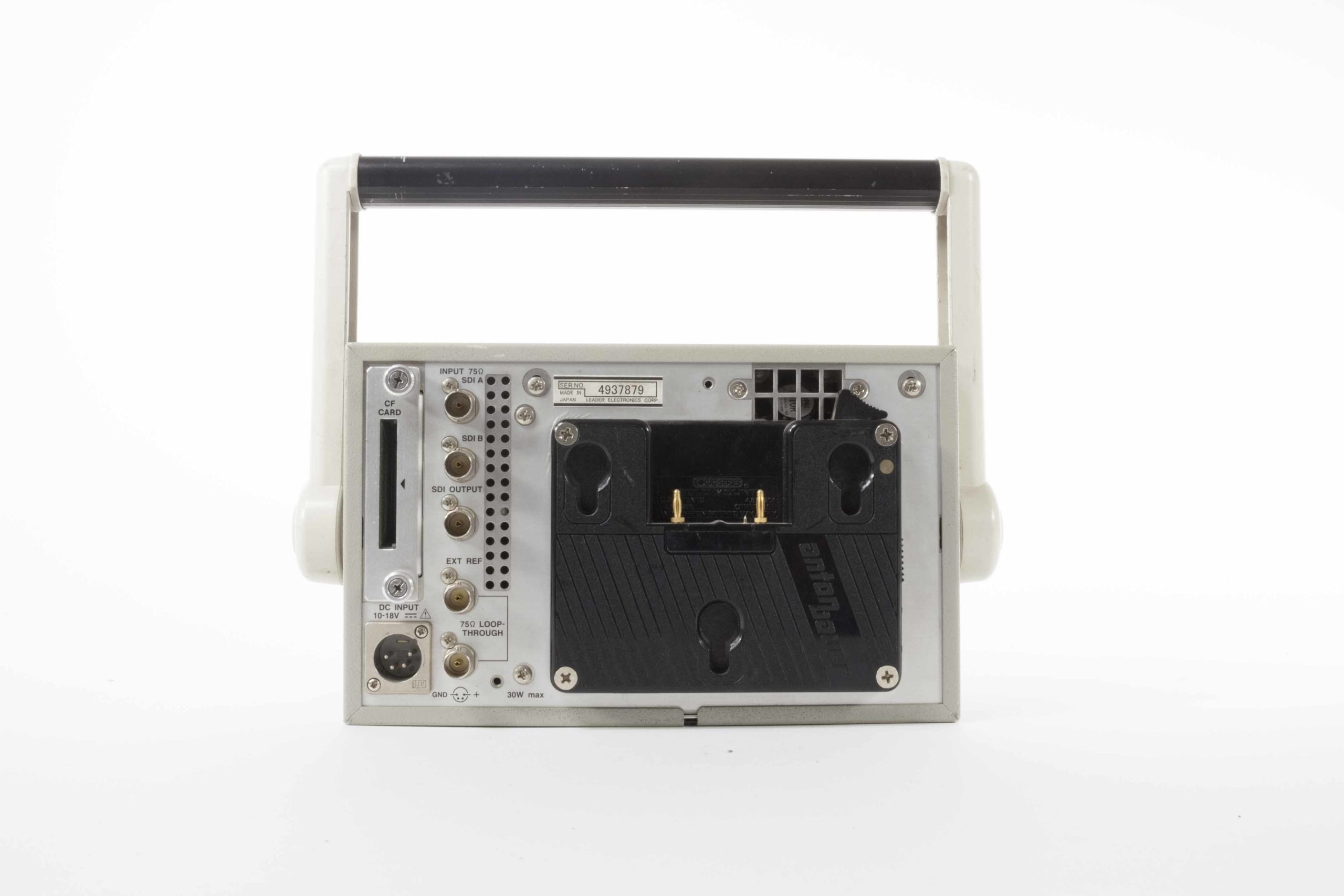

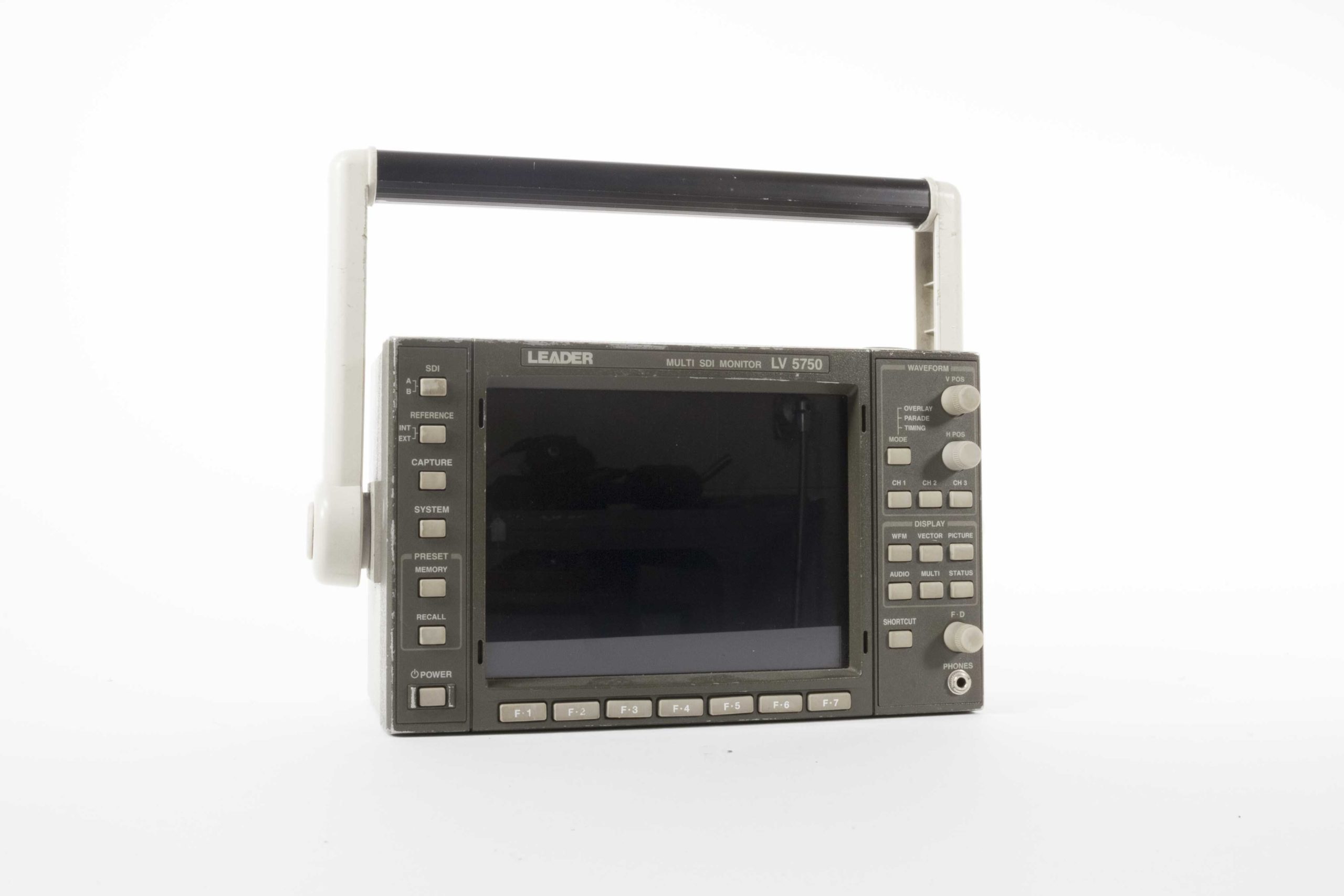

Leader LV5750 Multi SDI Waveform Monitor w/ Top Handle

Price
$2,495.00

Leader LV5750 for SaleLeader LV5750 for sale

Product Highlights

The Leader LV5750 is a new paradigm in portable digital testing. This multiformat HD-SDI and SD-SDI monitor features a color XGA (1024 x 768) LCD screen waveform monitor for signals. SDI inputs support auto detection of twenty standard formats. Selected SDI input signals are reclocked and output to an active serial output. Complete digital processing of SDI signals enables highly accurate measurements. Test modes include waveform, vector, picture, audio, and status displays with time code. Displays and sub-displays can be viewed in various combinations side by side or as a four in one multi-display. A composite signal conversion converts SDI component signals into pseudo-composite waveform or vector for NTSC or PAL.

Vector shows chrominance difference signals in vector format with the amplitude settable as variable, IQ-MAG, or x5 times. Line selection with strobe of the same line can be displayed in picture, waveform, vector and data dump with values in hex or binary notation eases analysis. Complete protocol test and analysis functions are provided. Variable vector gain includes onscreen readout for optimizing digital camera CCU set up with Chroma Du Monde chip charts.

In stock

  • Monitors SMPTE-259M, SMPTE-292M, SMPTE-296M
  • Auto Detects HD-SDI and SD-SDI, 525/60 and 625/50
  • Auto Detection of Ext. Ref. BB/Tri-Level Sync
  • Switched SDI Output of Selected Input
  • Total Digital Signal Processing
  • Multi-Display Modes including Sub Frames
  • Parade/Overlay/Timing (YCbCr/YRGB/RGB)
  • Full Digital Line Select with Strobe
  • Electronic Graticules are Selectable
  • Precision Digital Cursors
  • Timing for Component Interchannel Errors
  • Special Active and H Blanking Measurement Modes
  • Selectable Colorimetry as Needed
  • Time Code LTC or VITC
AUDIO

  • Headphone Monitoring of any Selected Channels
  • Select any Two Groups of Embedded Audio
  • Surround Modes (3-1, 3-2, 3-2-2
  • Multi-Lissajous for System Phase Checks
  • 8-Channel Readouts of Ref Levels or Digital Noise Floors
  • 8-Channel Bargraph (Level, Peak 60, 90 dB or Ave.)
  • Selectable Channel Assignments
  • Auto ID of 16-Channels of Active Embedded Audio
VECTORSCOPE

  • Selectable I & Q Axes and 100%/75% Targets
  • Vectorscope Magnification with Readout (x2, x5 and P-Mag)
  • Variable Gain with Onscreen Readout to Ref Cameras with Chip Charts
STATUS

  • Data Dump for Detailed Pixel Analysis
  • Adjustable Alarm Threshold
  • Cable Length and Warning Alarms (Patented)
  • Flash Card for Cloning, Mirroring, Logging & Presets
  • Frame Capture for Continuity and to Match Cameras
  • 30 User Presets
GENERAL

  • Standard 1/4″ 20 Tripod Mount
  • Anton Bauer Battery Format
  • Lightweight at 5.5 lbs without battery
  • DC Operation Standard (30 Watts)]
  • Optional Ethernet or Remote Control
