Mark Vb Director’s Viewfinder

Price
$725.00

Mark Vb Director’s Viewfinder
Mark Vb Director's Viewfinder (Front View)Mark Vb Director's ViewfinderMark Vb Director's ViewfinderMark Vb Director's ViewfinderMark Vb Director's ViewfinderMark Vb Director's ViewfinderMark Vb Director's ViewfinderMark Vb Director's ViewfinderMark Vb Director's ViewfinderMark Vb Director's Viewfinder

Product Highlights

The Mark Vb Director’s Viewfinder accurately defines choice of lenses, angles and coverage in a wide variety of formats for both film and video.

SKU: 1000-01

Manufactured by Alan Gordon Enterprises, the Mark Vb Director’s Viewfinder is the latest version of the Academy Award-winning Mark V and continues to be the choice of Film and Video makers worldwide. The Mark Vb has all the features of the Mark V plus new markings on the Aspect Ratio ring, making it easier to read for both film and video use. We also eliminated the 1/2 ” video window and replaced it with the current video chip standard of 2/3.” Film sizes and video formats are color-coded for quick reading.

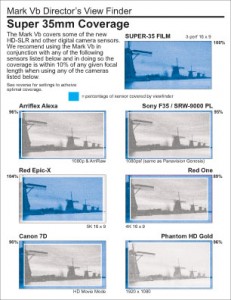

Mark Vb Director's ViewfinderSuper 35 sensors

The Mark Vb Directors viewfinder will give you readings for a number of digital sensors within 10% of a given lens focal length. To achieve this, set the aspect ratio ring to 16X9 and read the 35mm window. The finder is now set for Super 35 and this setting is also true for the following digital camera sensors: Arri Alexa, Sony F35 PL, Sony F65, Red Epic-X, Red Scarlet, Red One, Canon 7D, and the Phantom HD Gold.

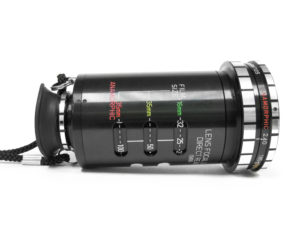

12:1 Zoom Ratio Ring

Smooth zooming from wide angle to telephoto. Focal lengths are viewed in windows located on the barrel of the viewfinder. The zoom range for the various formats is as follows:

Film

  • 16mm film: 8.5-100mm
  • Super 16 film: 10.5-125mm
  • 35mm film: 18-200mm
  • 35 Anamorphic film: 35-420mm

Video

  • 2/3″ video: 8.5-75mm

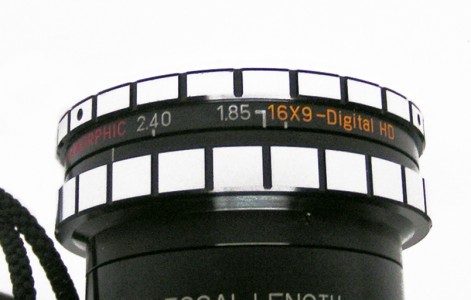

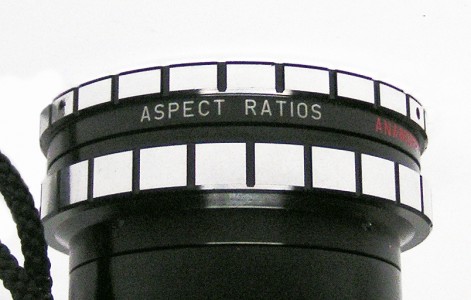

Adjustable Aspect Ratio Ring

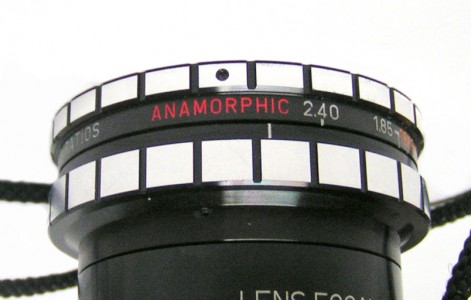

You may adjust the viewfinder to the aspect ratio that is appropriate for you film or video application. Available aspect ratios are: 1.33:1 standard TV, 16×9 HDTV, 1.85:1 standard 35mm ratio and 2.40:1 anamorphic wide screen, also known as Panavision or Cinemascope.

6 Glass Elements

Produce the sharpest image possible.

Color Coding

Film sizes and video formats are color-coded for quick reading.

Adjustable Focusing Ring & Rubber Eyecup

The eyepiece focusing ring can be adjusted to sharpen the image at any given setting, much like the viewfinder adjustment on your camera. The collapsed rubber eyecup prevents scratching your glasses.
