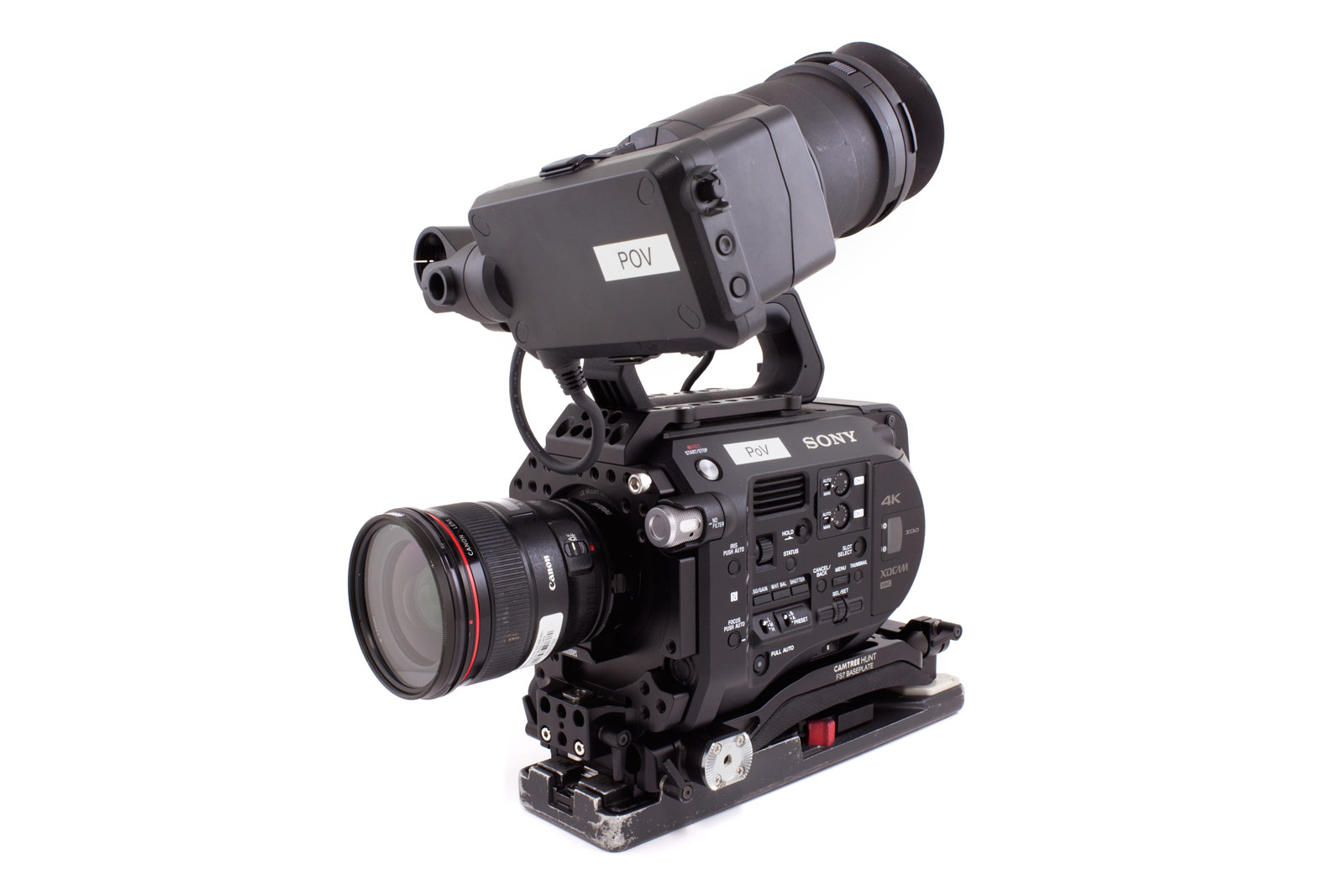

Sony PXW-FS7

Day Rate
$375

sony fs7 - Los Angeles Rental
sony fs7 - Los Angeles Rentalsony fs7 - Los Angeles Rentalsony fs7 - Los Angeles Rentalsony fs7 - Los Angeles Rental
sony fs7 - Los Angeles Rentalsony fs7 - Los Angeles Rentalsony fs7 - Los Angeles Rentalsony fs7 - Los Angeles Rentalsony fs7 - Los Angeles Rental

Product Highlights

  • Super 35 Sized CMOS Sensor
  • Sony E-Mount (EF adapter included in package)
  • DCI 4K (4096 x 2160) Up to 60p
  • UHD Up to 60 FPS, HD Up to 180 FPS
  • 4096 x 2160 Via External Recorder
  • XAVC-I, XAVC-L, MPEG-2
  • XAVC-I Up to 600 Mb/s
  • Dual XQD Memory Card Slots
  • Dual HD/3G-SDI & HDMI Output

The Sony FS7 features a 4K Super35 sensor that gives you 14 stops of latitude as well as a wide color gamut. Two choices of codecs are available: XAVC or MPEG—2. The XAVC codec records 4K & HD, while MPEG-2 can only be used for HD.

Internally, the Sony FS7 records 4K up to 60fps in UHD 3840×2160 and in HD up to 180fps. 4K (4096×2160) is available over the 3G-SDI or HDMI 2.0 outputs. This allows you to capture 4096×2160 video via an optional external recorder. The Sony FS7 camera is equipped with the Sony E-mount.

It features a Super 35mm size sensor that allows you to capture images with cinematic depth of field. The camera’s E-mount is machined from stainless steel and allows you to use E-mount lenses or with the use of optional adapters to accept most 35mm lenses including PL, EF, Leica, and Nikon. The camera can capture footage to optional on-board XQD media cards in either DCI (4096 x 2160), UHD (3840 x 2160) at up to 60 FPS or HD at up to 180 FPS.

Designed as a camera that is at home on productions as diverse as “Cinéma Vérité”-style documentaries, reality TV, commercial and corporate applications the Sony FS7 XDCAM Super 35 Camera System is a flexible 4K camera system. The FS7 records in your choice of XVAC-I, XVAC-L, or MPEG-2. However, MPEG-2 recording does not support the high data rates the camera is capable of generating when shooting in UHD, and is limited to recording HD video only. The FS7 incorporates Dual XQD media card slots that support simultaneous or relay recording. An ergonomically designed handgrip provides control of many of the FS7’s functions and features an adjustable length support arm.


Rent the Sony PXW-FS7 today from Alan Gordon Enterprises! We have been serving the film community in Los Angeles for over 70 years. We rent, sell, and manufacture a wide variety of motion picture equipment, and we offer training and repair services as well. We are located in Hollywood at 5625 Melrose Ave, half a block west from Paramount Studios. For more information, email rental@alangordon.com or call (323) 466-3561.

Image Device Super 35mm Single-Chip Exmor CMOS



Effective Picture Elements 17:9 4096 (H) x 2160 (V)
16:9 3840 (H) x 2160 (V)



Signal-to-Noise Ratio 57 dB (Y)



Sensitivity 2000 lx, 89.9% reflectance
T14 (3840 x 2160/23.98p mode 3200K)ISO Sensitivity
ISO 2000 (S-Log3 Gamma D55 Light source)



Minimum Illumination 0.7 lux: +18dB,23.98P,Shutter OFF,ND Clear, F1.4



Signal System NTSC / PAL



Built-in Filters Clear, 1/4, 1/16, 1/64



LCD Monitor 3.5" / 8.8 cm
Approx: 1.56M dots



Speaker Monaural



Shutter Speed 1/3 to 1/9000 of a sec



White Balance Preset
Memory A
Memory B (1500K-50000K)/ATW



Gain Selection -3, 0, 3, 6, 9, 12, 18 dB, AGC



Gamma Curve STD
HG
User
S-log3



Shooting Formats 4K 4096 x 2160
12-bit RAWUHD 3840 x 2160
10-bit 4:2:2 XAVC-I
8-bit 4:2:0 XAVC-L

2K 2048 x 1080
12-bit Raw

HD 1920 x 1080
10-bit 4:2:2 XAVC-I
10-bit 4:2:2 XAVC-L
MPEG2 4:2:2

HD 1280 x 720
MPEG2 4:2:2



Audio Recording Format LPCM 24 bits, 48 kHz, 4 channels (Recording/Playback 2 channels)



Recording Formats XAVC-I QFHD MPEG-4 H.264/AVC
59.94P CBG, bit rate 600 Mb/s
50P CBG, bit rate 500 Mb/s
29.97P CBG, bit rate 300 Mb/s
23.98P CBG, bit rate 240 Mb/s
25P CBG, bit rate 250 Mb/sXAVC-I HD MPEG-4 H.264/AVC
59.94P VBR, maximum bit rate 222 Mb/s
50P VBR, maximum bit rate 185 Mb/s
59.94i VBR, maximum bit rate 111 Mb/s
50i VBR, maximum bit rate 112 Mb/s
29.97p VBR, maximum bit rate 111 Mb/s
23.98p VBR, maximum bit rate 89 Mb/s
25p VBR, maximum bit rate 112 Mb/s

XAVC-L QFHD MPEG-4 H.264/AVC
59.94p/50p mode: VBR, maximum bit rate 150 Mb/s
29.97p/23.98p/25p mode: VBR, maximum bit rate 100 Mb/s

XAVC-L HD 50 MPEG-4 H.264/AVC
VBR, maximum bit rate 50 Mb/s

XAVC-L HD 35 MPEG-4 H.264/AVC
VBR, maximum bit rate 35 Mb/s

XAVC-L HD 25 MPEG-4 H.264/AVC
VBR, maximum bit rate 25 Mb/s

MPEG-2 Long GOP
CBR, maximum bit rate 50 Mbps, MPEG-2 422P@HL

XAVC-I QFHD 3840 x 2160/ 59.94p, 50p, 29.97p, 23.98p, 25p

XAVC-I HD
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

XAVC-L QFHD 50
3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p
XAVC-L 35
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

MPEG-2 Long GOP
1920 x 1080/59.94i, 50i, 29.97p, 23.98p, 25p 1280 x 720/59.94p, 50p, 29.97p, 23.98p, 25p



Recording Frame Rate XAVC-I QFHD
3840 x 2160/ 59.94p, 50p, 29.97p, 23.98p, 25pXAVC-I HD
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

XAVC-L QFHD
3840 x 2160/59.94p, 50p, 29.97p, 23.98p, 25p

XAVC-L HD 50
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

XAVC-L 35
1920 x 1080/59.94p, 50p, 59.94i, 50i, 29.97p, 23.98p, 25p

XAVC-L 25
1920 x 1080/59.94i, 50i

MPEG-2 Long GOP MPEG HD422
1920 x 1080/59.94i, 50i, 29.97p, 23.98p, 25p
1280 x 720/59.94p, 50p, 29.97p, 23.98p, 25p



Slow & Quick Motion Function XAVC-I mode 3840 x 2160: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
XAVC-I mode 1920 x 1080: 1 to 180 frames (59.94p, 29.97p, 23.98p)
XAVC-I mode 1920 x 1080: 1 to 150 frames (50p, 25p)
XAVC-L mode 3840 x 2160: 1 to 60 frames (59.94p, 50p, 29.97p, 23.98p, 25p)
XAVC-L mode 1920 x 1080: 1 to 120 frames (59.94p, 50p, 29.97p, 23.98p, 25p)



Maximum Recording Time XAVC-I mode QFHD 59.94p
When using QD-G128A (128 GB): Approx. 22 minutes
When using QD-G64A (64 GB) Approx. 11 minutesXAVC-I mode QFHD 50p
When using QD-G128A (128 GB): Approx. 26 minutes
When using QD-G64A (64 GB) Approx. 13 minutes

XAVC-I mode QFHD 29.97p
When using QD-G128A (128 GB): Approx. 44 minutes
When using QD-G64A (64 GB) Approx. 22 minutes

XAVC-I mode QFHD 23.98p
When using QD-G128A (128 GB): Approx. 55 minutes
When using QD-G64A (64 GB) Approx. 27 minutes

XAVC-I mode QFHD 25p
When using QD-G128A (128 GB): Approx. 52 minutes
When using QD-G64A (64 GB) Approx. 26 minutes

XAVC-I mode HD 59.94p
When using QD-G128A (128 GB): Approx. 59 minutes
When using QD-G64A (64 GB) Approx. 30 minutes

XAVC-I mode HD 50p
When using QD-G128A (128 GB): Approx. 71 minutes
When using QD-G64A (64 GB) Approx. 35 minutes

XAVC-I mode HD 59.94i
When using QD-G128A (128 GB): Approx. 118 minutes
When using QD-G64A (64 GB) Approx. 59 minutes

XAVC-I mode HD 50i
When using QD-G128A (128 GB): Approx. 141 minutes
When using QD-G64A (64 GB) Approx. 70 minutes

XAVC-I mode HD 29.97p
When using QD-G128A (128 GB): Approx. 118 minutes
When using QD-G64A (64 GB) Approx. 59 minutes

XAVC-I mode HD 23.98pM/b>
When using QD-G128A (128 GB): Approx. 147 minutes
When using QD-G64A (64 GB) Approx. 74 minutes

XAVC-I mode HD 25p
When using QD-G128A (128 GB): Approx. 141 minutes
When using QD-G64A (64 GB) Approx. 70 minutes

XAVC-L mode QFHD 59.94p/50p
When using QD-G128A (128 GB): Approx. 87 minutes
When using QD-G64A (64 GB) Approx. 44 minutes

XAVC-L mode QFHD 29.97p/23.98p/25p
When using QD-G128A (128 GB): Approx. 131 minutes
When using QD-G64A (64 GB) Approx. 66 minutes

XAVC-L 50 mode
When using QD-G128A (128 GB): Approx. 262 minutes
When using QD-G64A (64 GB) Approx. 131 minutes

XAVC-L 35 mode
When using QD-G128A (128 GB): Approx. 374 minutes
When using QD-G64A (64 GB) Approx. 187 minutes

XAVC-L 25 mode
When using QD-G128A (128 GB): Approx. 524 minutes
When using QD-G64A (64 GB) Approx. 262 minutes

MPEG HD422 mode
When using QD-G128A (128 GB): Approx. 262 minutes
When using QD-G64A (64 GB) Approx. 131 minutes



Media Card Slots 2 x XQD
1 x SD (for configuration data only)



Input and Output Connectors Audio Input
2 x 3-pin XLR
Line/mic/mic +48
Mic Reference: -40. -50. -60 dBuSDI Output
2 x BNC HD/3G-SDI
SMTPE292M/424M/425M

HDMI 2.0
1 x Type A

USB
USB device, miniB

Headphone
1 x Stereo mini jack
-16 dBu 16 Ω

Remote
Stereo mini jack (Φ2.5 mm)



Accessory Shoe Multi-Interface (MI) shoe



Power Requirement 12 VDC



Power Consumption Approx. 19 W (while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device)



Battery Operating Time BP-U30: Approx. 1 hr while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device
BP-U60: Approx. 2 hr while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device
BP-U90: Approx. 3 hr while recording XAVC-I QFHD 59.94p, SELP28135G Lens, Viewfinder ON, not using external device



Temperature Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 140°F / -4 to 140°C



Dimensions (WxHxD) 6.14 x 9.41 x 9.72" / 156 x 239 x 247 mm



Weight 4.4 lb / 2.0 kg: Body Only
9.9 lb / 4.4 kg: Body, Viewfinder, Eyepiece, Grip Remote Control, BP-U30 Battery, SELP28135G Lens, an XQD Memory card



Packaging Info
Package Weight 12.0 lb
Box Dimensions (LxWxH) 15.8 x 13.5 x 12.5"

(1) Sony FS7 Camcorder with pistol grip, top handle, viewfinder w/ 5in rod
(1) Camtree Hunt FS7 Baseplate
(1) Metabones EF SPEED BOOSTER ULTRA Adapter
(2) BP-U60 Sony Lithium Battery
(1) BP- U30 Sony Lithium Battery
(1) SONY Battery Charger W/ DC Out
(1) Lexar 128 GB XQD 1400X
(2) Sony 64GB XQD 1400X
(1) Sony XQD Card Reader G Series
