Revar Cine Rota-Pola 4×5.65/138mm (with or w/o Polarizer)

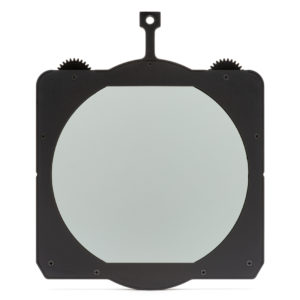

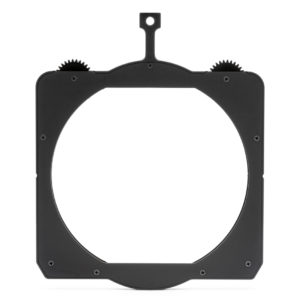

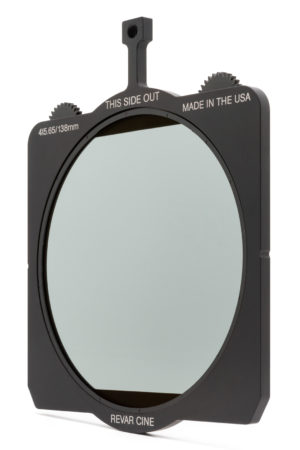

Revar Cine Rota-Pola Rotating Polarizer Filter Tray without GlassRevar Cine Rota-Pola with Glass - 4x5.65 Matte Box RotaPola Filter Tray with 138mm Circular Rotating PolarizerRevar Cine Rota-Pola Storage PouchRevar Cine Rota-Pola Tray, No Glass - AngledRevar Cine Rota-Pola Tray without Glass - ReverseRevar Cine Rota-Pola Tray - Side ViewRevar Cine RotaPola Tray with Glass - ReverseRevar Cine RotaPola Tray with Glass - AngledRevar Cine Rota-Pola Tray Gear Detail

Product Highlights

With 1.5 stops of light loss, the Revar Cine Rota-Pola is a geared filter tray with a 138mm polarizer, made to interface with the latest 4×5.65 matte boxes on the market today. It is designed and manufactured in the USA from aircraft-grade aluminum and poly materials.  Commonly referred to as a RotaPola, this geared tray allows for the use of a common 138mm unmounted circular polarizer in a rectangular 4×5.65 matte box tray slot. The tray is also available without glass so you can purchase your own polarizer or special effects filters from leading manufacturers.

SKU (with glass): 1056-ROTA-POLA
SKU (w/o glass): 1056-ROTA-POLA2

Distributed Exclusively by Alan Gordon Enterprises.

New size available! Check out the brand new Revar Cine 6.6×6.6 Rota-Pola


Built into a single-stage, self-contained unit, the Revar Cine Rotating Polarizer, or Rota-Pola, is a compact, easily-rotatable polarizing solution for most matte boxes that accept 4×5.65″ filters. Rather than requiring a full 4×5.65″ glass filter, the Rota-Pola tray uses an included 138mm-diameter filter which sits inside the rotating tray. If the polarizer needs to be adjusted, simply rotate one of the geared wheels that extend from the top of the tray on either side.

The included filter is a 138mm mid-efficiency circular polarizer, manufactured from Schott B270 glass. It features 38% transmission (1.5 stops of light loss) and Broadband anti-reflective coating for reducing unwanted flares. The tray itself has a lightweight and rigid aluminum construction.

Simply insert it into a top-loading 4×5.65 matte box tray slot and spin the gear on either side of the filter tray to rotate the filter inside. This allows for easy rotation of the filter without the need for cumbersome locking and unlocking of a rotating filter stage. This also allows for rotation of a filter in matte boxes that do not contain a rotating filter stage, or if a secondary rotating filter is needed in a non-rotating stage.

The Rota-Pola Tray also boasts features missing from other competitive products, such as standard 0.8 pitch gears on both sides of the filter tray for use from either the operator or assistant side of the camera, a 1/4-20 female threaded hole for mounting of a wireless follow focus for remote crane or jib operation of the filter, and an overall lightweight, low-profile design.

The tray is also available with no glass so you may choose to purchase your own Polarizer or Special Effect filters from leading filter manufacturers. Simply order an unmounted 138mm filter and confirm that it has a dimension of  5.236″ diameter (+/-0.010″) and 0.135″ thickness (+/- 0.005″).

Perhaps the largest innovation with the Rota-Pola is the price. Compare at an average savings of 40%-70% to competitive products with more features and freshly updated design for today’s cameras and matte boxes.

Compatible with Bright Tangerine, Arri, Vocas, Chrosziel, O’Connor O-Box, and many other matte boxes on the market today. Not compatible with RedRock Micro matte boxes.

Buy the Revar Cine Rota-Pola from Alan Gordon Enterprises today! We have been serving the film community in Los Angeles for over 70 years. We rent, sell, and manufacture a wide variety of motion picture equipment, and we offer repair services as well. We are located in Hollywood at 5625 Melrose Ave, half a block west from Paramount Studios. For more information, email or call (323) 466-3561.
